BONDED SEALS - USIT

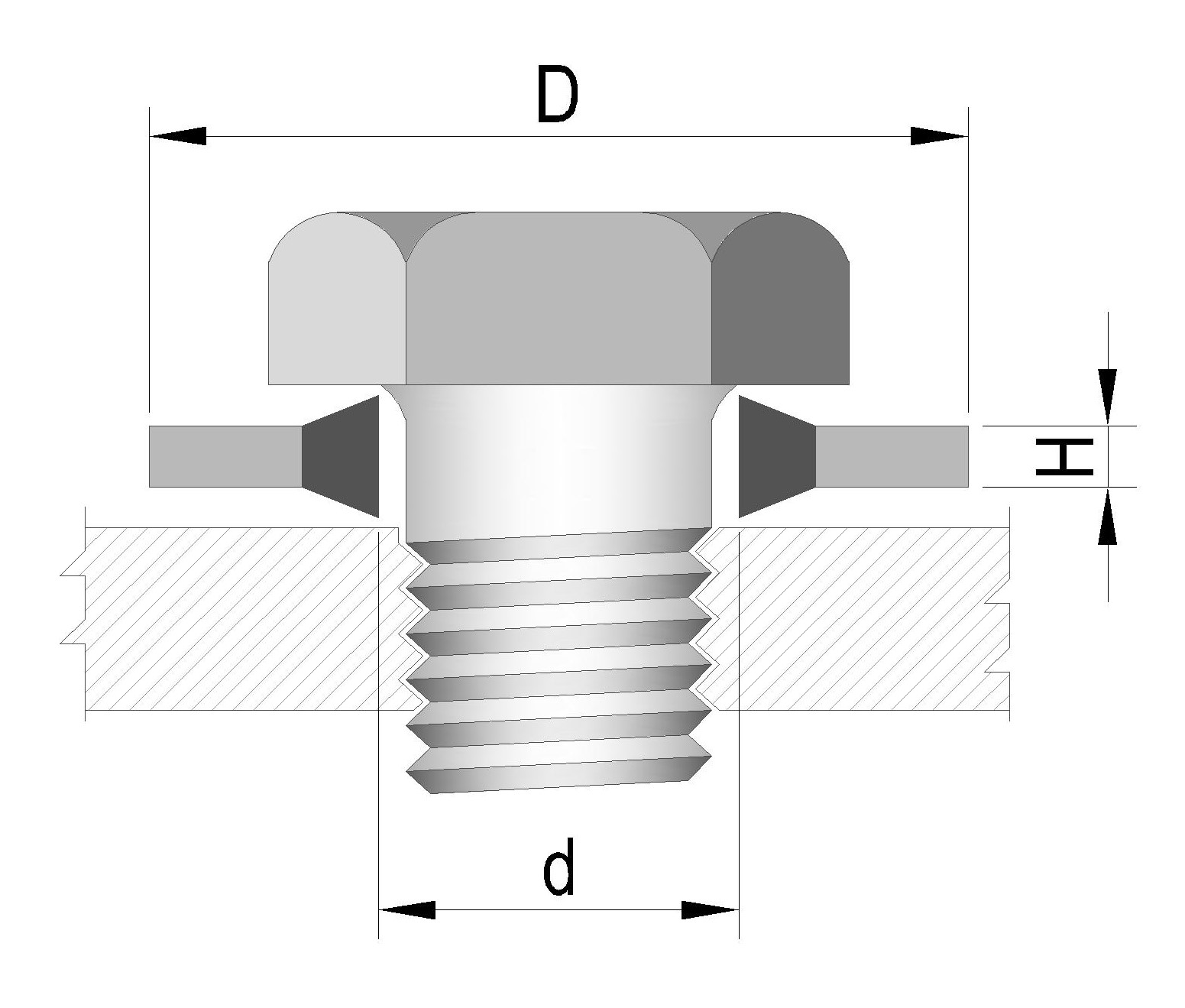

Bonded seals are metal washers with a vulcanised trapezoidal elastomer sealing lip, used as static seals for screw connections and flange gaskets. By tightening the screw, the elastomer sealing lip is compressed and thus generates the sealing effect. The design features a self-centring sealing lip. This ensures correct and leak-free assembly.
Results 1 - 36 of 36
Results list
d D H Size Select an article
4,50 7,00 1,00 M4 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
5,21 8,38 1,20 M5 CARBON STEEL+NBR70
Available: Yes
5,70 9,00 1,00 M5 CARBON STEEL+NBR70
Available: Yes
5,70 9,00 1,00 M5 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
6,20 9,10 1,00 M5,5 CARBON STEEL+FKM70
Available: Yes
6,70 10,00 1,00 M6 CARBON STEEL+NBR70
Available: Yes
6,70 10,00 1,00 M6 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
8,70 13,00 1,00 M8 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
10,37 15,88 2,00 1/8" CARBON STEEL+NBR70
Available: Yes
10,37 15,88 2,00 1/8" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
10,70 16,00 1,50 M10 CARBON STEEL+NBR70
Available: Yes
10,70 16,00 1,50 M10 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
12,70 18,00 1,50 M12 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
13,74 20,57 2,00 1/4" CARBON STEEL+NBR70
Available: Yes
13,80 20,57 2,00 1/4" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
14,70 20,00 2,00 M14 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
16,70 22,00 2,00 M16 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
16,70 24,00 1,50 M16 CARBON STEEL+NBR70
Available: Yes
17,28 23,80 2,00 3/8" CARBON STEEL+NBR70
Available: Yes
17,28 23,80 2,00 3/8" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
18,70 25,00 2,00 M18 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
20,70 28,00 2,00 M20 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
21,50 28,50 2,30 M21 CARBON STEEL+NBR70
Available: Yes
21,54 28,58 2,30 1/2" CARBON STEEL+NBR70
Available: Yes
21,54 28,58 2,50 1/2" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
22,70 30,00 2,00 M22 CARBON STEEL+NBR70
Available: Yes
22,70 30,00 2,00 M22 SELF CENTERING CARBON STEEL+NBR70
Available: Yes
27,10 34,93 2,30 3/4" CARBON STEEL+NBR70
Available: Yes
27,10 34,93 2,50 3/4" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
27,82 38,61 2,30 1-1/16" CARBON STEEL+NBR70
Available: Yes
33,90 42,80 3,20 1" CARBON STEEL+NBR70
Available: Yes
33,90 42,80 3,50 1" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
42,93 52,38 3,20 1-1/4" CARBON STEEL+NBR70
Available: Yes
42,93 52,38 3,50 1-1/4" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
48,50 58,60 3,50 1-1/2" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
60,58 73,03 3,50 2" SELF CENTERING CARBON STEEL+NBR70
Available: Yes
Results 1 - 36 of 36
