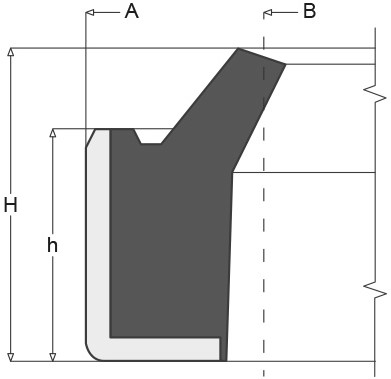

Standard rubber wiper with external metal body. MOUNTING GROOVE: must be machined to ISO H8 standards and complete with chamfer. TEMPERATURE: Range -25 / +100 °C compound NBR Range -20 / +100 °C compound FKM LINEAR SPEED: 2 m/s USE: Wiper for rods with alternative linear movement OUTSIDE Ø: Metal CONSTRUCTION: Metal casing + Wiper lip

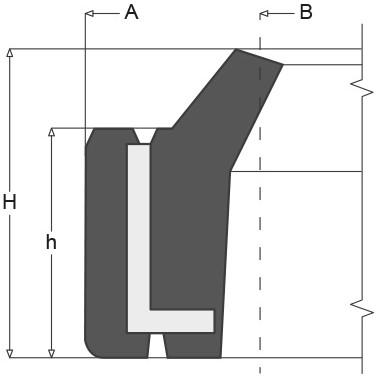

Standard rubber scraper, with internal metal reinforcement.
TEMPERATURE: Range -25 / +100 °C NBR compound
Range -20 / +100 °C FKM compounds
LINEAR SPEED: 2 m/s
USE: Reciprocating linear movement rod scraper Ø EXTERIOR: Covered with rubber
CONSTRUCTION: Rubber covered metal box + Scraper lip

Standard rubber scraper, closed seat mounting.

TEMPERATURE:Range -30 / +110 °C in NBR compound
LINEAR SPEED: 1 m/s
USE: Rod wiper with reciprocating linear movement
CONSTRUCTION: Rubber.
FITTING: Closed seats.

Description: Double effect scraper ring. Dual-compound scraper, made up of a PTFE compound pad coupled to an elastomer O-ring with an energizing function.
Its main features are low friction, the absence of stick-slip and the high scraping effect guaranteed over time regardless of external environmental conditions.
Its double action increases the efficiency of the sealing system. Upon request, it can be supplied in different pairs of compounds for special applications.
Types of use: Dynamic applications for - alternating rectilinear motion - alternating rotary motion - helical motion.
Temperatures: - 60 + 200 °C depending on the compound of the combined o-ring. Speed: = 15 m/s

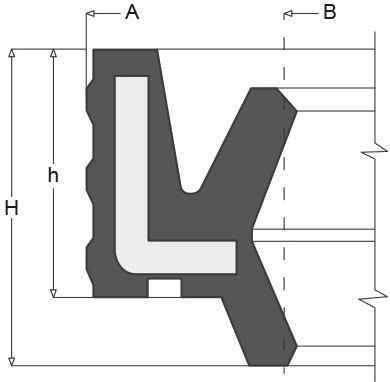

Special profile with double scraper lip and groove on the external diameter.
MOUNTING GROOVE: must be machined to ISO H8 standards and complete with chamfer.
TEMPERATURE: Range -25 / +100 °C NBR compound
Range -20 / +100 °C FKM compounds
LINEAR SPEED: 2 m/s
USE: Special scraper for rods with reciprocating linear movement
Ø EXTERIOR: Covered with rubber
CONSTRUCTION: Rubber covered metal box + Double scraper lip + External rifling

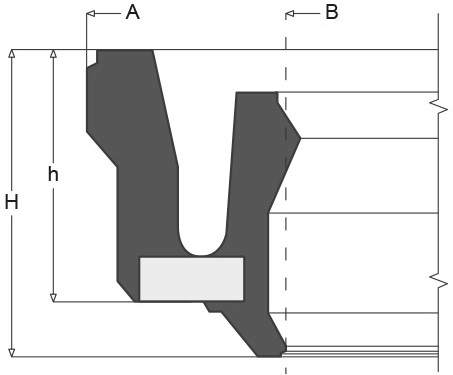

Special profile with reinforcing metal insert.
TEMPERATURE: Range -25 / +100 °C NBR compound
Range -20 / +100 °C FKM compounds
LINEAR SPEED: 2 m/s
USE: Special scraper for rods with reciprocating linear movement
Ø EXTERIOR: Rubber
CONSTRUCTION: Special rubber body and scraper lip + Reinforcing metal ring

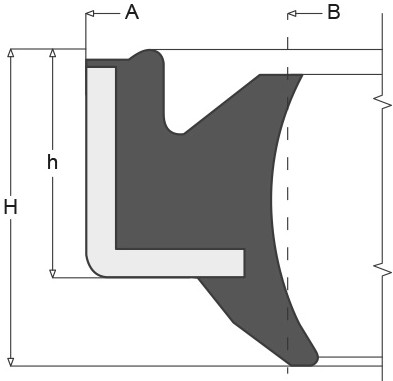

Special profile with external metal and double shaped scraper lip.
TEMPERATURE: Range -25 / +100 °C NBR compound
Range -20 / +100 °C FKM compounds
LINEAR SPEED: 2 m/s
USE: Special scraper for rods with reciprocating linear movement
EXTERNAL Ø: Metal
CONSTRUCTION: Metal box + Double shaped scraper lip

Like the RG profile, with dust cover lip.
USE: Reciprocating linear movement rod scraper
Ø EXTERIOR: Covered with rubber
CONSTRUCTION: Rubber covered metal box + Scraper lip + Dust cover

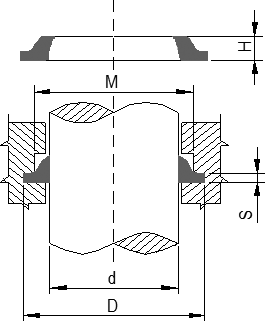

They are normally mounted on a cylinder with the function of an oil scraper or dust seal and must be compressed axially in their seat with a ring. The maximum operating pressure is 4 MPa (40 bar).
