V-RINGS
Rubber seal rings made in a single piece up to 2,100 mm, and joined for larger diameters. They provide a front seal and are ideal for protecting against dirt, dust or water. Can be used as a secondary seal to protect another seal ring.
The V-Ring is a seal that is easy to use and assemble as it is self-retaining on the shaft, which does not require a particular degree of finish and tolerance. The contact area can have a variable roughness from Ra 0.5 to Ra 1.6, depending on the speed and the contaminant to be retained.
It can be used without the use of a metal strap up to a peripheral speed of 10/12 m/sec.
Metal strip mounted on request.

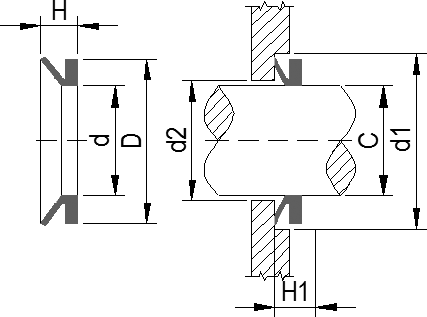

Standard V-Ring with section proportional to the shaft diameter.
USE: Front seal
Ø EXTERIOR: Rubber
CONSTRUCTION: Full rubber front seal

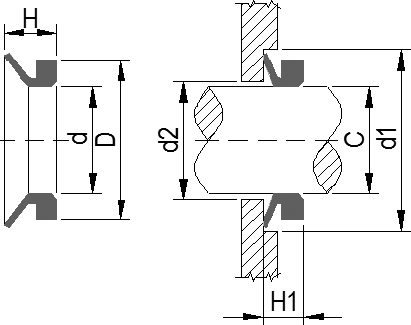

V-Ring with increased profile for perfect adhesion, and section proportional to the diameter of the shaft.
USE: Front seal
Ø EXTERIOR: Rubber
CONSTRUCTION: Full rubber front seal
V-Ring with reduced section to allow use in small spaces. Section of fixed dimensions.
USE: Front seal
Ø EXTERIOR: Rubber
CONSTRUCTION: Full rubber front seal
V-Ring with special profile sealing lip for greater elasticity. Section of fixed dimensions.
USE: Front seal
Ø EXTERIOR: Rubber
CONSTRUCTION: Full rubber front seal
